Stands for all terrain vehicle, this unique dollie will roll over difficult surfaces such as gravel driveways and lawns with ease. 6-8" air filled pneumatic casters provide a smooth cushioned ride. Great for moving bulky, heavy objects such as pianos, display cases, appliances, etc. 3 rubber caps grip and protect your load. Dollies lowered center wheels can make 360 turns. Frame is 1 1/16" Kiln Dried Hardwood 18" wide x 42" long

Model ATV - 8" Air filled pneumatic wheel 2000 lb. capacity

This dollie is constructed of 7/8" thick seasoned hardwood with the 30" siderail boards fully carpeted and used as the top surface of the dollie. It has an 18" x 30" frame with a 4" siderail and 6" endboards. Like all our dollies, the casters are fastened with nylon lined locknuts that will not loosen or back off.

Model BD - 3HR - 3" Hard Rubber Wheel - 1000 lb. capacity

Model BD - 3HTR - 3" Hi-Tech Rubber Wheel - 800 lb. capacity

Model BD - 4HTR - 4" Hi-Tech Rubber Wheel - 1000 lb. capacity

Hot Brand Stamping marks your company name deep into your dollie for a permanent impression that paint won't cover.

This dollie had the same frame size and construction as the Carpet End 3" dollie but with a 4" caster. The larger 4" diameter wheel will roll more easily on carpet and perfom better on rough or uneven surfaces.

Model CD - 4HR - 4" Hard Rubber Wheel - 1100 lb. capacity
Model CD - 4HTR - 4" Hi-Tech Rubber Wheel 1000 lb. capacity

We recommend 4" Hi-Tech Rubber casters for any dollie requiring a 4" caster, it is the perfect caster to use on a dollie. For information and description of dollie casters, see page 5.

Adams manufactures the finest rubber end dollie you can buy. All around heavy duty frame has 1-1/16" kiln dried hardwood siderails bullnosed on both the inside and outside edges for smooth handling. 3" wide endboards are covered with a heavy non marking rubber cap with a raised lip to protect walls. All bolts are countersunk beneath the surface of the wood. Dollies are equiped with your choice of quality made casters for trouble free moves. Casters are secured with nylon lined locknuts that will not loosen or back off. 18" x 30" frame.

Model RE - 35HTR - 3 1/2" Hi-Tech Rubber Wheel - 900 lb. capacity
Model RE - 4HTR - 4" Hi-Tech Rubber Wheel - 1000 lb. capacity
Model RE - 4HR - 4" Hard Rubber Wheel - 1100 lb. capacity
Model RE - 40RAL - 4" Aluminum Side Core Wheel - 1000 lb. capacity

The most used and abused dollie in the industry. 18" x 30" frame is made from 7/8" thick seasoned hardwood. Siderails are 4" wide and bullnosed on both edges. The endboards are 6" wide and fully carpeted. Casters are secured with nylon lined locknuts that will not loosen or back off.

Model CD - 3HR - 3" Hard Rubber Wheel - 1000 lb. capacity
Model CD - 3HTR - 3" Hi-Tech Rubber Wheel
800 lb. capacity

We manufacture two types of Jumbo Dollies, our first style is the traditional 18" x 30" dollie made from 7/8" hardwood, with 18" x 12" carpeted ends and bullnosed edges for smooth handling.

Our second model is the West Coast style 19" x 32" dollie made from select 2" x 4" fir siderail boards with 19" x 12" carpeted plywood ends. Both models have 4" Hi-Tech rubber casters standard.

Model JD - 1830 - 4" Hi-Tech Rubber wheel - 1000 lb. capacity. (Hardwood Frame) Traditional Style
Model JD - 1932 - 4" Hi-Tech Rubber Wheel - 1000 lb. capacity. (2" x 4", Plywood Frame) West Coast Style

This dollies 30" siderail boards are fitted with heavy duty non marking rubber belting for a secure grip on furniture and files even on the most difficult moves. Endboards and casters are set back 1-3/4" from end of dollie. This dollie has an 18" x 30" frame constructed of 7/8" kiln dried hardwood boards 4" wide. All bolts are countersunk.

Model HD - 35HTR - 3 1/2" Hi-Tech Rubber Wheel - 900 lb. cap.
Model HD - 4HTR - 4" Hi-Tech Rubber Wheel - 1000 lb. cap.
Model HD - 40RAL - 4" Aluminum Side Core Wheel - 1000 lb. cap.

This dollie is made to support and move heavy equipment. Its 18" x 30" hardwood frame has 1-1/16" siderail boards 8" wide, this leaves a 2" handhold space in the center for lifting the dollie. The endboards are 18" x 12" which make a large stable base for equipment. Carpeted ends prevent scratching or marring. The dollie height is only 6-1/2" from the ground, this design allows a heavy machine to be lifted easily onto and off of the dollie. A 3" low profile wheel is used, it is a high strength high impact wheel that features a roller bearing axle and an extra wide 2" treadwidth. This is a super tough wheel that provides excellent floor and carpet protection with a high load capacity.

Model HD - 3P - 3" Low Profile Wheel - 3600 lb. capacity

Popular dollie throughout the Midwest. The 18" x 32" frame has the casters set in slightly on both ends, this allows the dollies to rest lengthwise on top of each other, countersunk bolting prevents any damage to the rubber caps. The extra heavy endboards are mortised and triple bolted. This unique construction allows for tight and easy stacking, stacks are 23" wide which means less room on the truck and on the job. Constructed of 1-1/16" kiln dried hardwood with bullnosed edges.

Model CRE - 35HTR- 3-1/2" Hi-Tech Rubber Wheel 900 Ib. cap.

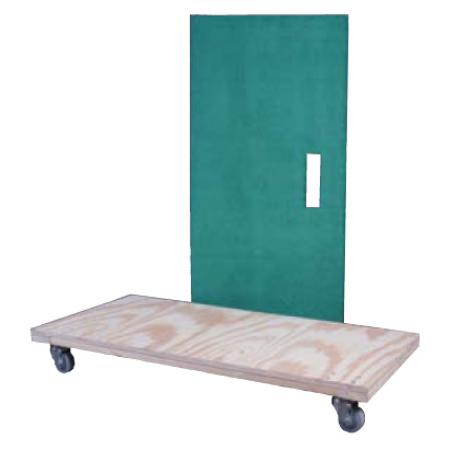

Pictured with optional carpeted deck and hand hole cutout.

This dollie's deck is constructed of smooth sanded 3/4" plywood. It has 5/4 lumber underbracing on all four sides for added strength with countersunk bolting for a smooth deck. Plywood dollies offer a great combination of strength and economy and are very easy to custom make into any size you need. Available with optional hand hole cutout for easier lifting. Also available with fully carpeted deck and sides. Here are four of our more popular sizes.

Model PPD - 3HTR - 3" Hi-Tech Rubber Wheel - 900 lb. cap.

Adams manufactures two popular versions of a platform dollie. These dollies are useful in many different warehouse and industrial applications. Both dollies are made from 7/8" thick kiln dried hardwood with all bolts countersunk for a smooth surface. The Flush Top dollie has an open center hardwood frame. Its 4" wide siderail boards are doubled which adds strength and creates a flush surface. The Solid dollie is constructed of select hardwood boards fitted together to form a solid top, this makes a very strong and versatile dollie. 18" x 30" Frame size

This dollie is useful in moving desks, appliances or any equipment with long legs, it is equipped with 5" Hi-Tech casters and double thick rubber cap endrails. This gives the dollie a height of 10" which allows clearance on most equipment; if 10" is not enough height we can add more endboards to the dollie to achieve the height you need. 18" x 30" Kiln Dried Hardwood Frame 1 1/16" thick.
Model HRR - 5HTR - 5" Hi-Tech Rubber Wheel 1100 lb. capacity

Move grand pianos, heavy refrigerators, stoves and other bulky items without effort with one of these dollies under each leg. They are made of cast iron, enriched with steel for strength and durability. Specifications:

-> Wheels - 3-2" diameter swivel, hard rubber or steel
-> Body - 2" deep well-tapers 5" at top to 3-3/16" at bottom. 9" overall size- 3" floor height
-> Weight - 8 1/2 lbs.
-> Weight capacity - hard rubber wheel - 375 lbs. (Steel wheel - 450 lbs.)

Makes any dollie a panel mover, rails slip on and off in seconds. Rails are made of high tempered steel which has great strength and flexibility. Heavy rubber coating is Bonded onto rails and will not tear off. Sold in sets of two.

Each rail weighs 12 lbs. and is 13" wide x 38" tall. 800 lb. capacity
