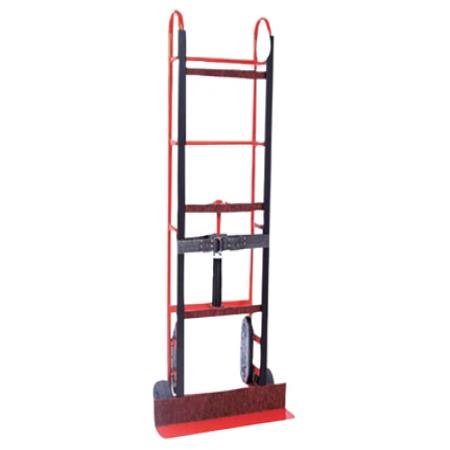

"single ratchet"
* Height: 60"
* Width: 17"
* Weight: 41 lbs.
* Load Capacity: 500 lbs.

"double ratchets"
* Height: 60"
* Width: 17"
* Weight: 45 lbs.
* Load Capacity: 500 lbs.

"single ratchet"
* Height: 60"
* Width: 16"
* Weight: 51 lbs.
* Load Capacity: 750 lbs.

"double ratchets"
* Height: 60"
* Width: 16"
* Weight: 55 lbs.
* Load Capacity: 750 lbs.

Shares same features of SRT trucks with these exceptions:
-> 1" steel tubular frame
-> No felt padding on footplate
-> 8" x 2-1/2" solid rubber tires for higher ground clearance, rolls easier over gravel and grass
Height: 60"
Width: 16"
Load capacity: 800 lbs.
-> Single ratchet
-> Weight 48 lbs.

Specifications
-> Rugged 1" 14 gauge tubular steel construction
-> Retractable 3-1/2" swivel casters for supporting load during operation
-> The famous Roller Bearing Crawler Treads
-> 8" x 2" - 3/4" poly tread/poly core wheels.
-> Padded with felt and non-marking vinyl
-> Ratchet Strap Tightener
-> Automatic Strap Recoil
-> 55 Angle with swing released
-> One 3-ply 2-piece 14' web strap
-> Footplate: 7 Gauge x 5" x 24"
-> Load Capacity: 1200 lbs.
-> 60" high
-> 17" wide
-> Weight: 72 lbs.
-> Available in three heights 60'', 66'' and 72''

Designed to assist in moving big screen TVs. But is adaptable to any oversize load. Fits any Stevens model truck with a 6" wheel, slips easily on and off with no tools. 26" wide x 10" deep

You can easily convert your standard Stevens Appliance Trucks to a 10" wheel with the Big Wheel attachment. A 6" x 5/8" turn buckle attaches and removes the wheels easily. Otherwise difficult tasks, like running over sand or gravel, become easy with the Big 10" Wheel Attachment. It also turns your appliance truck into a 4 wheel truck which enables the load to be supported entirely by the truck instead of by the operator.
-> P neumatic 10" T ires
-> Weight 15 lbs.
-> M odel BWA-M fits magnesium trucks
-> M odel BWA-S fits 3/4" steel trucks

Wesco's state of the art battery powered stair climbing trucks have standard features not availabe on competitor models.

* 1/2 horsepower, 50 amp, high torque motor runs cooler under load and gets over 80% more lifts per charge.
* Industrial grade gear box transmits steady power and is preferable to other drive designs
* Large 2" diameter, polyurethane lifting feet provide more secure stair gripping
* Auto rewind ratchet works first to take the slack out of the cargo belt, and then provides a ratchet crank to securely tighten the load * Nose plate is 24" wide by 4" deep
* Sealed maintenance-free battery. Charger and circuit breaker included
* Welded magnesium frame and noseplate
* 6" mold-on rubber wheels
* 30" from noseplate to center of belt

Superwheel attachment. Installs in seconds. Equipped with 10" x 4" full pneumatic tires. Provides 4 wheel support and eases transport over rough surfaces.

Kick-out wheel Options. Can be ordered with truck or installed later - no drilling necessary. Provides 4 wheel support. Easily deployed with a press of a pedal.

Superwheel attachment. Installs in seconds. Equipped with 10" x 4" full pneumatic tires. Provides 4 wheel support and eases transport over rough surfaces.

Kick-out wheel Options. Can be ordered with truck or installed later - no drilling necessary. Provides 4 wheel support. Easily deployed with a press of a pedal.

Charge battery while driving between stops. Plugs into cigarette lighter.
Cable length 20'.

Easily clips on to standard toe plate and provides 12" deep x 28" wide cargo surface.
